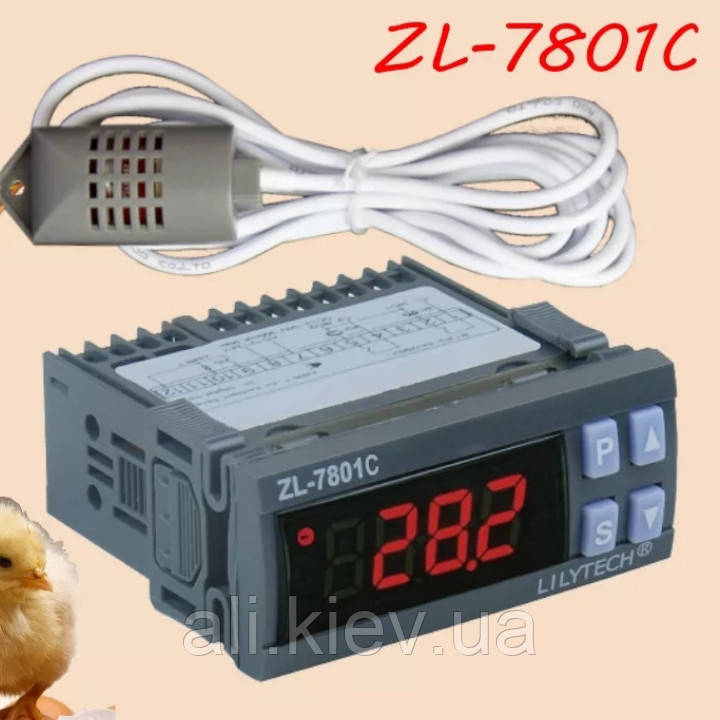

Humidity and temperature Controller

1. Feature

ZL7801C is an intelligent temperature and humidity controller. Compact design, IP65 level front panel protection, convenient operation and easy installation. Suitable for control of incubator, climate chamber, warehouse, and so on.

2. Main Function

• heating control (R3)
• Dehumidify control/ Humidify control (R2)
• humidity load (R2) delay protection
• Timer 1 control (R4 R5) (egg left-turning, egg right-turning)
• Timer control 2 (R1) (Ventilation/Over temperature)
• Temperature and humidity protection limit
• Temperature and humidity measurement and display
• Temperature and humidity calibration
• Sensor failure warning

3. Size Specification

• Front panel dimension: 78* 34.5 mm
• Drilling template: 71* 29 мільйонами доларів
• Whole machines dimension: 78* 34.5* 71mm
• Length of sensor(s): 2m (including the sensor probe)

4. Technical Specification

• Power supply: AC100 -240V 50HZ/60HZ
• Input signal: One humidity and temperature sensor, wire length 1 meter
• Output load: R1 5A/250Vac, R2 R3 16A/250Vac, R4 R5 3A/250Vac (Resistive load)
• Setting range: Humidity 0-100RH, step 0.1%; temperature -20-120degC, step 0.1 deg
• Absolute accuracy: Temperature 1%; humidity 3%(under temperature 20~60℃)
• Working environment: -20-45degC, 10-90RH without dew
• Protection level: IP65 (front panel)
• Case: PC + ABS Fire Proo
• Protection Degree: IP65 (front panel)
• PCB Lacquered protection
